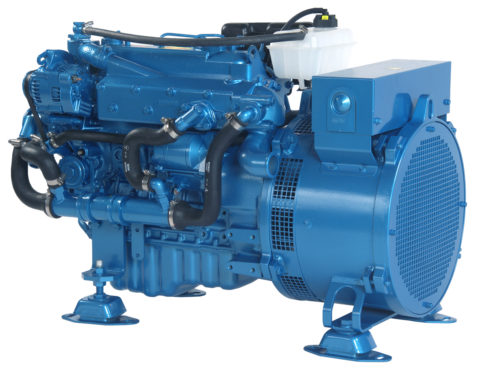

Nanni Marine Diesel Generator QMS10M

10kW

Kubota Base

The QMS10M Genset is equipped with a sturdy and effi cient Kubota base engine, tested in all marine or industrial applications throughout the world. The E-TVCS combustion system also allows to comply with the most stringent emissions regulations while reducing noise level and maintaining low fuel consumption.

Reliability and longevity

Its 1498 cc and its Nanni Compact Cooling® heat exchange cooling system, bring to this generator set a maximal life span and a smooth functioning.Maintenance operations are simple and quick, thanks to, among other things, a timing gear and an easy access to the various service points.

Onboard power supply and comfort

The light and compact alternator delivers a single phase tension of 230 Volts. It is also equipped with an electronic regulator which, together with the constant engine speed, provides an excellent stability to frequency and tension.

Soundproof System

Delivering a maximum power of 10 kW, the Nanni Diesel genset QMS10M ensures the powering of the on-board electrical appliances, including those with high surge rating. The light and compact alternator delivers a single phase tension of 230 Volts. It is also equipped with an electronic regulator which, together with the constant engine speed, provides an excellent stability to frequency and tension.

Generator Ratings

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 43.5 max
  • Amperes (A): 38.3 cont.
  • Power (kW): 10 max
  • Power (kW): 8.8 cont.

Weights & Dimensions

  • Dry Weight (kg): 244 / 291 with soundshield
  • Length (mm): 925 / 1050 with soundshield
  • Width (mm): 489 / 540 with soundshield
  • Height (mm): 620 / 710 with soundshield
