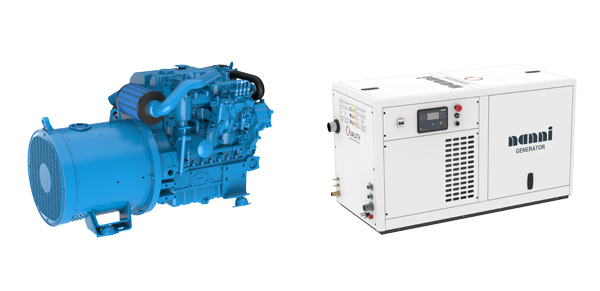

Nanni Marine Diesel Generator Q3300

24.9kW

Kubota base

The Q3300 Genset is equipped with a sturdy and efficient Kubota base engine, tested in all marine applications worldwide. The E-TVCS combustion system also allows the Q3300 to comply with the most stringent emissions regulations while reducing noise levels and maintaining low fuel consumption.NANNI 24.9kW marine diesel generator

Injection and combustion system

The Super Glow System comes as standard equipment to start the engine in cold temperatures.

The E-TVCS injection system produces an ideal air/fuel mixture by creating three vortexes in the combustion chamber. This improves the combustion efficiency, resulting in low-level fuel consumption.

Onboard power supply and comfort

Delivering a maximum power of 24.9kW, the Nanni Diesel genset Q3300 ensures the powering of onboard electrical appliances, including those with high surge ratings.

Soundproof System

For an even quieter experience, the Q3300 genset is available with a soundshield. The sound enclosure is made of insulated panels in painted marine aluminium, with multiple access ports for all necessary connections and maintenance items, including lifting visual access.



Generator Ratings

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 103.5 max
  • Power (kW): 24.9 max
  • Power (kW): 23.8 cont.

Weights & Dimensions

  • Dry Weight (kg): 550 / 625 with soundshield
  • Length (mm): 1257 / 1310 with soundshield
  • Width (mm): 607 / 660 with soundshield
  • Height (mm): 739 / 830 with soundshield
