Nanni Marine Diesel Generator Q2400

18kW

Engine Base

The Q2400 Genset is equipped with a sturdy and efficient Kubota base engine, tested in all marine applications worldwide. The E-TVCS combustion system also allows the Q2400 to comply with the most stringent emissions regulations while reducing noise levels and maintaining low fuel consumption.

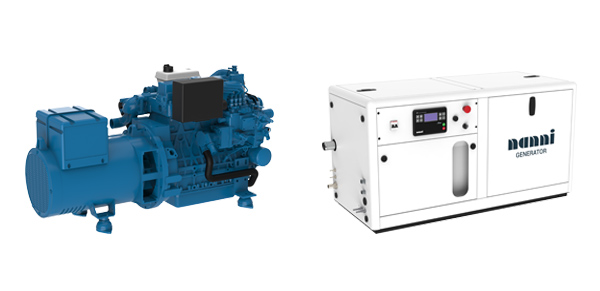

NANNI 18kW marine diesel generator

Injection and Combustion Chamber

The Super Glow System comes as standard equipment to start the engine in cold temperatures.

The E-TVCS injection system produces an ideal air/fuel mixture by creating three vortexes in the combustion chamber. This improves the combustion efficiency, resulting in low-level fuel consumption.

Onboard power supply and comfort

Delivering a maximum power of 18kW, the Nanni Diesel genset Q2400 ensures the powering of onboard electrical appliances, including those with high surge ratings. The light and compact alternator delivers a single phase tension of 230 Volts. Soundproof System

For an even quieter experience, the Q2400 genset is available with a soundshield. The sound enclosure is made of insulated panels in painted marine aluminium, with multiple access ports for all necessary connections and maintenance items, including lifting visual access.



Generator Ratings

  • Voltage (V): 230
  • Frequency (Hz): 50
  • Amperes (A): 74.3 max
  • Power (kW): 18 max
  • Power (kW): 17.1 cont.

Weights & Dimensions

  • Dry Weight (kg): 405 / 450 with soundshield
  • Length (mm): 985 / 1085 with soundshield
  • Width (mm): 540 / 600 with soundshield
  • Height (mm): 650 / 700 with soundshield
