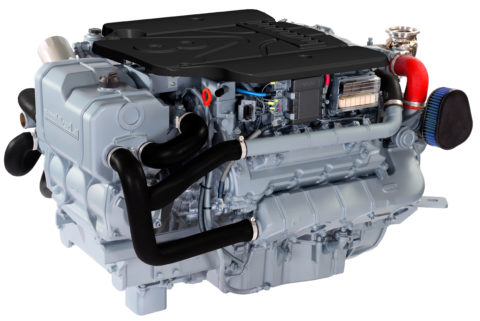

Nanni Marine Diesel Engine T8V.370
370 hp
Technical Specifications
- Engine Base: Toyota
- Rated Power (kW/HP): 272 / 370
- Rated RPM: 3800
- Displacement (cm³/in³): 4500 / 272
- Number of Cylinders: 8 V design 90° 4 valves per cylinder
- Bore and Stroke (mm/in): 86 x 96 / 3.39 x 3.78
- Compression Ratio: 15.8:1
- Intake: Twin Turbocharged
Engine Specifications
- Dry Weight with Transmission (kg/lb): 350 / 771
- Maximum Install Angle: 7° (dynamic)
- Exhaust Hose Diameter (mm/in):
- Fuel Hose Diameter (mm/in):
- Sea Water Hose Diameter (mm/in):
- Transmission: Hydraulic Shaft
- Cooling: Closed with Heat Exchanger
- Certifications: EPA marine Tier 3, RCD Stage 2 2013/52/EU
Standard Equipment
- Fresh Water Cooled Exhaust Manifold
- Exhaust Elbow
- 4m Electrical Extension Harness
- Fuel Filter
- Oil Filter
- Mecanical Gearbox
- Sea Water Pump
Optional Equipment
- Marine Transmission Adaptor Kits
- Complete Propulsion Kit
- Thottle and Shift Controls
- Flybridge Panel and Extension Harness
- Trolling Valve
- Water Boiler System
- Complete Fuel System
- Complete Exhaust System
