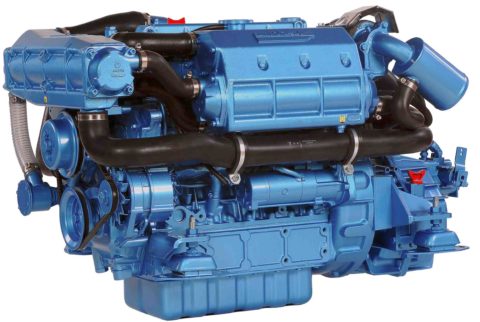

Nanni Marine Diesel Engine N4.115

115 hp

Kubota engine base

Originating from the latest generation diesel engines developed by Kubota, the N4.115 marine engine is regarded as an ideal solution for sailing yachts as well as sport fishing boats.

Ease of use

Given its 3.8 liter cylinder capacity and its new direct injection system (E-CDIS) with its 4 valves per cylinder, the ease of use of the N4.115 will make it an ideal engine for your boat. The maximum torque is already developed at low rpm allowing you to cruise more quietly with less fuel consumption. Its two balancing shafts as well as a special piston coating further reduce the sound level and vibrations emitted by the engine.

Powerful and compact

Used on heavy sailing boats, the N4.115 proves its robustness and its reliability. Its small dimensions allow it to be fitted into compartments normally designed for engines with a lot less cylinder capacity. This engine will be your best friend during fishing trips or your offshore navigations.

Protecting the environment

The N4.115 complies with the most stringent emission regulations in the world: EU-RCD, US-EPA, BSO. The fact that the most prestigious shipyards have put their trust into this engine speaks for its quality and reliability.

Technical Specifications

  • Engine Base: Kubota
  • Rated Power (kW/HP): 84.6 / 115
  • Rated RPM: 2600
  • Displacement (cm³/in³): 3769 / 230
  • Number of Cyliners: 4 in line
  • Bore and Stroke (mm/in): 100 x 120 / 3.94 x 4.72
  • Compression Ratio: 21.8:1
  • Intake: Turbocharged

Engine Specifications

  • Dry Weight with Transmission (kg/lb): 378 / 833
  • Maximum Install Angle: 7° (dynamic)
  • Exhaust Hose Diameter (mm/in):
  • Fuel Hose Diameter (mm/in): 8 / 0.31
  • Sea Water Hose Diameter (mm/in): 32 / 1.25
  • Transmission: Mechanical Shaft, Hydraulic Shaft
  • Cooling: Closed with Heat Exchanger
  • Certifications: EPA, BSO, SAV, EU-RCD

Standard Equipment

  • Fresh Water Cooled Exhaust Manifold
  • Exhaust Elbow
  • 4m Electrical Extension Harness
  • Fuel Filter
  • Oil Filter
  • Mecanical Gearbox
  • Sea Water Pump

Optional Equipment

  • Keel Cooling Adaptation
  • Complete Propulsion Kit
  • Thottle and Shift Controls
  • Flybridge Panel and Extension Harness
  • Bi-Pole Electrical System
  • Water Boiler System
  • Complete Fuel System
  • Complete Exhaust System
